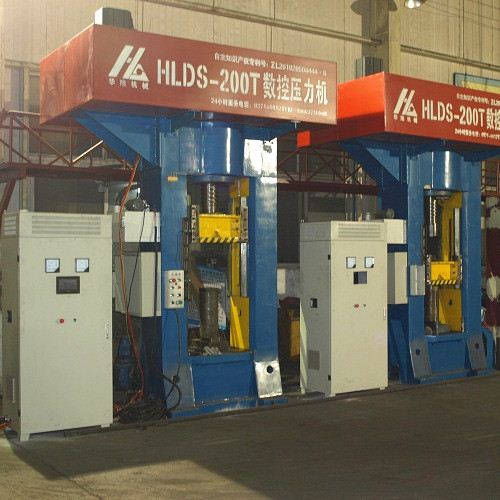

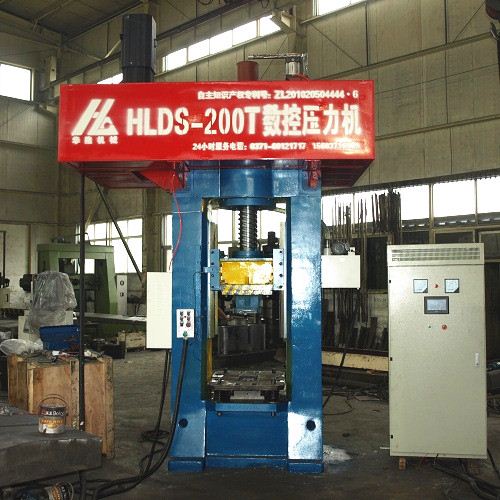

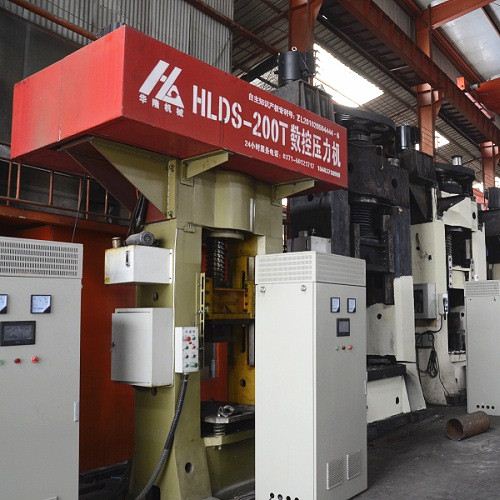

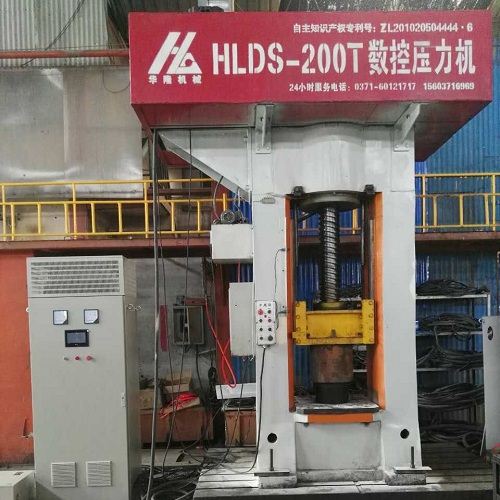

200T Electric Screw Press
Description

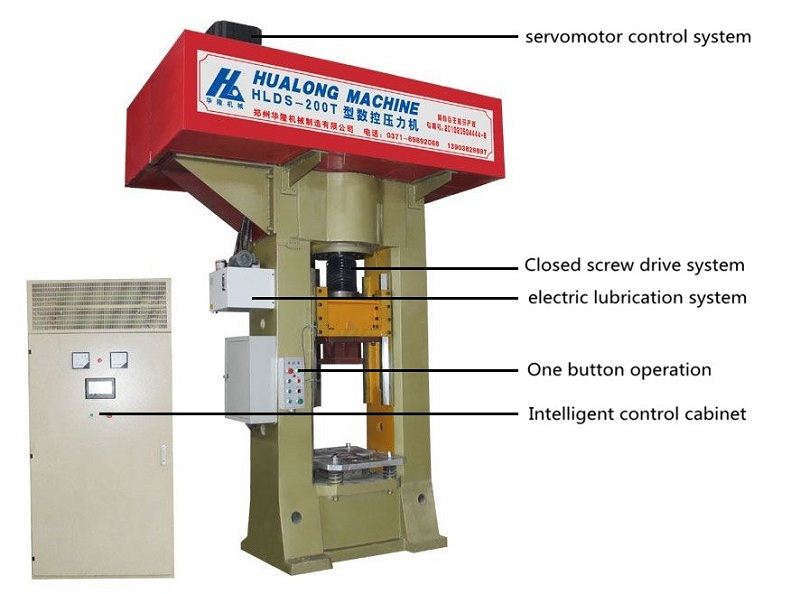

Product structure:
fully automatic screw press machine


Product inroduce:
    A electric screw press is a type of press machine in which the ram is driven up and down by a screw,which have the advantages of small volume,short of transmission chain,easy operation.
   Cnc electric screw press is a new technology type of electric screw press ,which were driven by permanent magnet synchronous servo motor,and consist of mechanical pats such as framework, flywheel, screw nut, the slider, lubricating mechanism, braking mechanism and electric parts such as servo motor, electric control cabinet, operating button station.


Product parameter:
Model nominal pressure
(KN/T)


max.
pressure
(KN)


slide stroke
(mm)


stroke No.
(mm)


die set height
(mm)


workatable size
(mm)


overall size
(mm)


motor
(Kw)


weight
(T)


HLDS-30T 300/30 600 300 40 670 550*550 1420*750*2136 4.2 1.2
HLDS-60T 600/60 1200 380 36 665 780*520 1550*800*2688 5.5 3.5
HLDS-200T 2000/200 4000 650 30 1000 900*660 2600*1600*4481 22 8.5
HLDS-315B 3150/315 6300 650 28 1100 1200×880 3150*2100*5328 37 21.5
HLDS-400B 4000/400 8000 700 28 1250 1200x1050 3300*2200*5675 52.3 28
HLDS-630B 6300/630 12000 750 26 1440 1250x1050 4000*2640*6432 84 53
HLDS-800B 8000/800 16000 750 26 1440 1300*1050 5000*2640*6545 52.3*2 57
HLDS-1000T/B 10000/1000 20000 700 22 1255 1350x1100 5600*2640*6620 78*2 75
HLDS-1200B 12000/1200 24000 700 22 1255 1450x1100 5600*2640*6620 84*2 78
HLDS-1600B 16000/1600 32000 800 20 1370 1800x1460 6200*3300*7305 136*2 118
HLDS-2000B 20000/2000 40000 800 18 1370 1900x1460 6500*3500*7600 160*2 162




Specification
Application to refractory industry:
refractory products fire bricks
  This automatic electrical screw press is a multiple functional fire bricks molding machine.
It is able to produce concrete bricks, high alumina bricks, high alumina corundum bricks, special shap bricks, magnesia bricks, SiC bricks, acid resistance bricks, acid proof bricks, special shapped bricks, carbon bricks, carbon graphite bricks, magnesite carbon bricks, alumina carbon bricks, silicon carbide bricks, diatomite bricks, moler bricks, zircon corundum bricks, alkali resistant bricks, cyanite bricks, magnesite calcium carbon bricks, magnesia alumina bricks, magnesite chromite bricks, monolithic refractory bricks, refractory nozzle, zircon mollite bricks, chemically bonded magnesite chrome bricks, magnesite spinel bricks, mullite bricks, multi purpose refractories, superduty bricks, high duty bricks and etc.

Application to forging industry:
metal parts,forging products,screw,bolt

Product feature:
Servo motor drive system:
1. Small start-up current: little impact on power grid.
2. Motor starts when press is punching and stops when feeding material,picking out bricks,and cleaning mould. Energy-saving high to 55%.
3. High control precision: speed error is only 0.0001/r.
4. Stable running:  no vibration and high torque when runs with low speed.
5. Quick response: very short time from static to rated speed, able to adjust speed freely between high speed to low speed within one stroke. Excellent effect of even hammer strike.
6. Speed overload function, achieves 2-3 times of rated speed.

Touch screen parameter setting system:
1. According to technology demands for different bricks, user can set the strike times, strike strength, and strike speed digitally. Able to achieve the effect of gently press for air-released, strike from gentle to heavy, the whole process of brick producing sequencing, reduce human factor to improve product quality.
2. Touch screen can real-time display the working status, monitor the producing process, detect and report the failure automatically.
3. Able to set password to protect production safety.
4. Touch screen has operation instruction and guideline.

Full automatic lubrication system:
1. Main engine adopts program controlled thin oil lubrication system, screw, nut and guide rail adopt program controlled grease lubrication system.
2. Oil shortage alarm function ensures equipment run healthily.
3. No need of maintenance, improves the service life of equipment and reduces the maintenance cost.

Multiple safety protection system:
1. Motor brake: through servo motor’s zero speed and torque to produce brake.
2. Mechanical brake: cylinder pushes friction plate to produce mechanical friction brake on the flywheel.
3. Emergency stop button: during working, it is able to press the emergency stop button at any time to make the slider back to TDC(top dead center) quickly.
4. Power loss protection: when power supply is abnormal, slider will stop immediately.
5. Optional equipment: can adopt demoulding outside the machine and add infrared raster.

 One button operating system:
1. Only need to press the start button to finish the whole working process.
2. Fool-style operation, no need of professional press machine operator.
3. Laborsaving, only need 2 people to finish all the procedure of weighing, material feeding, moulding and brick discharging.
4. 3 types of striking technology: press button to match die, semi-auto strike and full-auto strike.
5. Emergency stop button can realize the emergency stop at any time.
